Description

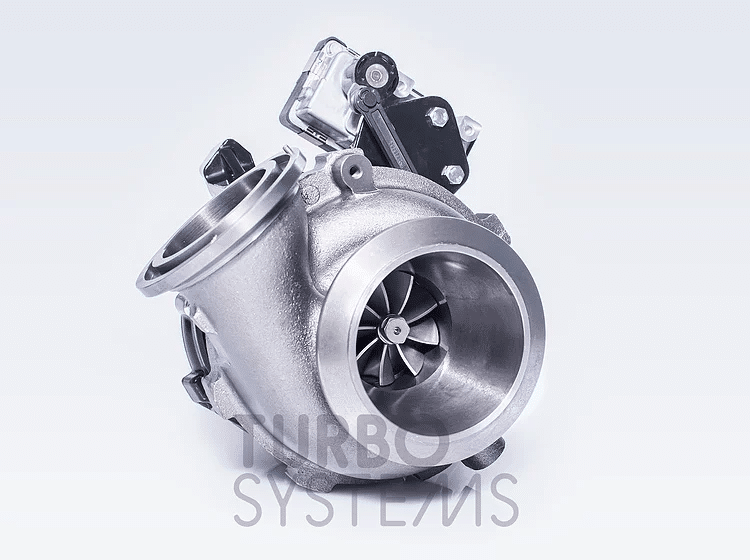

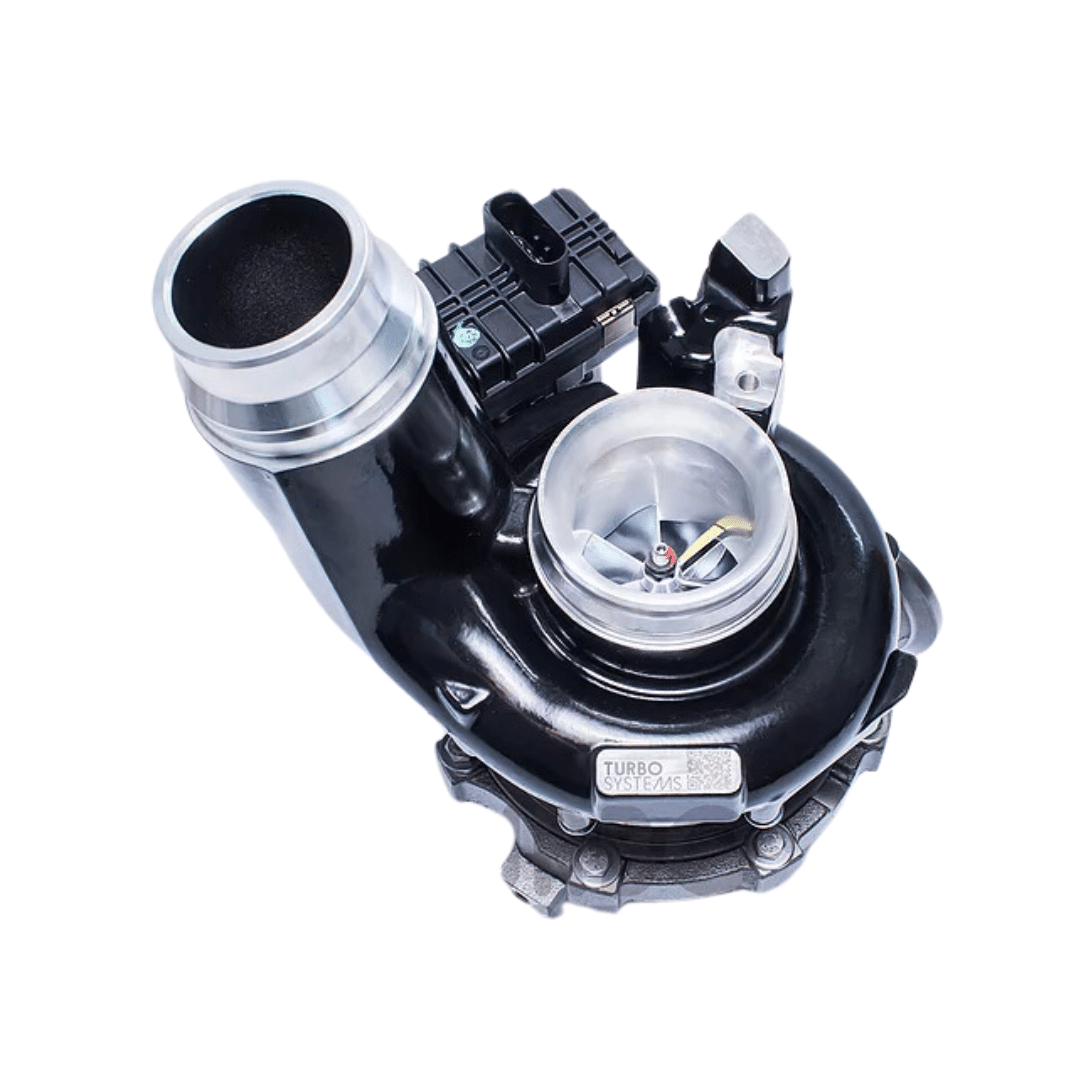

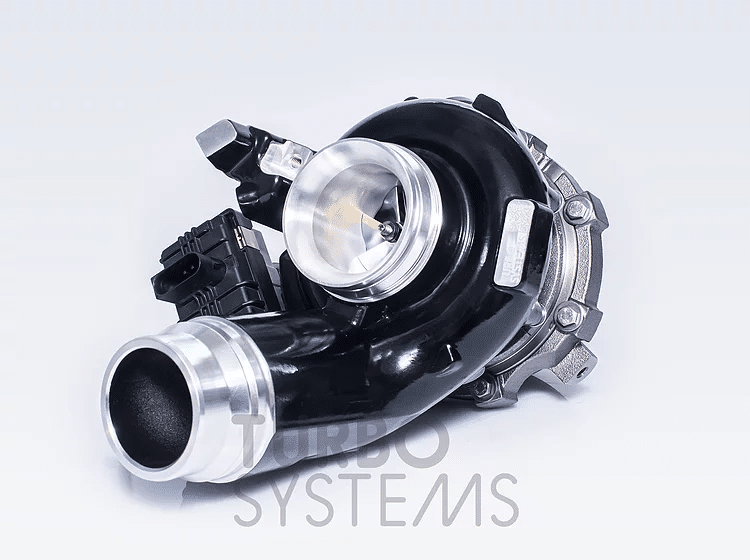

Bolt-on upgrade turbocharger solution for the BMW N57N engine for increased power. Designed to work with the stock exhaust manifold and other engine units. Available in four versions: Stage 1, Stage 2, Stage 3, and Stage 4. Specifications and compatibility list below.
Stage 1 (HTD2263):
• Upgraded bearing system
• CNC milled compressor housing
• Special compressor housing without plastic muffler
• CNC machined turbine housing
• Custom variable geometry nozzle
• Reinforced larger machined from solid compressor wheel – 45/63 mm
• Larger turbine wheel – 50/46 mm
• Refurbished housings
• Flow bench adjusted
• Balanced on VSR
• Power range: 350+ HP
Stage 2 (HTD2872):
• Upgraded bearing system
• CNC milled compressor housing
• Special compressor housing without plastic muffler
• CNC machined turbine housing
• Custom variable geometry nozzle
• Reinforced larger machined from solid compressor wheel – 50/72 mm
• Larger turbine wheel – 51/49 mm
• Refurbished housings
• Flow bench adjusted
• Balanced on VSR
• Power range: 370-400 HP
Stage 3 (HTD3073BB):
• Double ceramic ball bearing
• CNC milled compressor housing
• Special compressor housing without plastic muffler
• CNC machined turbine housing
• Custom variable geometry nozzle
• Reinforced larger machined from solid compressor wheel – 54/73 mm
• Larger turbine wheel – 58/54 mm
• Refurbished housings
• Flow bench adjusted
• Balanced on VSR
• Power range: 420+ HP
Stage 4 (HTD3279BB):
• Large double ceramic ball bearing
• Increased axle and wheel diameter 6 mm
• CNC milled compressor housing
• Special compressor housing without plastic muffler
• CNC machined turbine housing
• Custom variable geometry nozzle
• Reinforced larger machined from solid compressor wheel – 56/79 mm
• High flow turbine wheel design – 58/56 mm
• Refurbished housings
• Flow bench adjusted
• Balanced on VSR
• Power range: 490+ HP
Please note: The Stage 4 turbocharger is only suitable for professionals. An upgraded intake system, performance downpipe, and custom software are required for optimal performance.
Contents:
• Turbo
Item number: HTD2263/806094
Additional information
| Weight | 13.6kg |
|---|---|
| Brand |  Turbosystems |
| Stage | Stage 1, Stage 2, Stage 3, Stage 4 |
| Brand | Fashion model | Model code | Performance |
|---|---|---|---|
| Brand | Fashion model | Model code | Performance |
